Description
– Quick Charge
– 13MP camera
– Dual-band Wifi
– Dual cards and dual standby
– WWAN
– Seamless roaming
– IP67
– 1.2m
Large screen for wider field of view
8″ full-fit TFT color screen with sufficient display area to allow you to view more information at a glance.
High-end scan engine for easier scanning
Quick recognition of various 1D/2D codes, accurate data collection for stained, damaged, and warped codes.
Super high performance
With an octa-core high-performance CPU, Android 9 OS, faster computing, and smoother use experience.
Super long working endurance for uninterrupted operation
Removable 3.8V 8400mAh polymer battery, super large capacity and durable.
Larger and more clear sound
Dual-speaker stereo, BOX sound cavity, capturing clear feedback sound even in noisy environments.
Excellent industrial quality
IP67 sealing, 1.2 m drop test passed, shock resistance, and applicable to harsh environments.
*IP67 sealing is not equipped with the optical fingerprint module
Abundant configuration for more possibilities

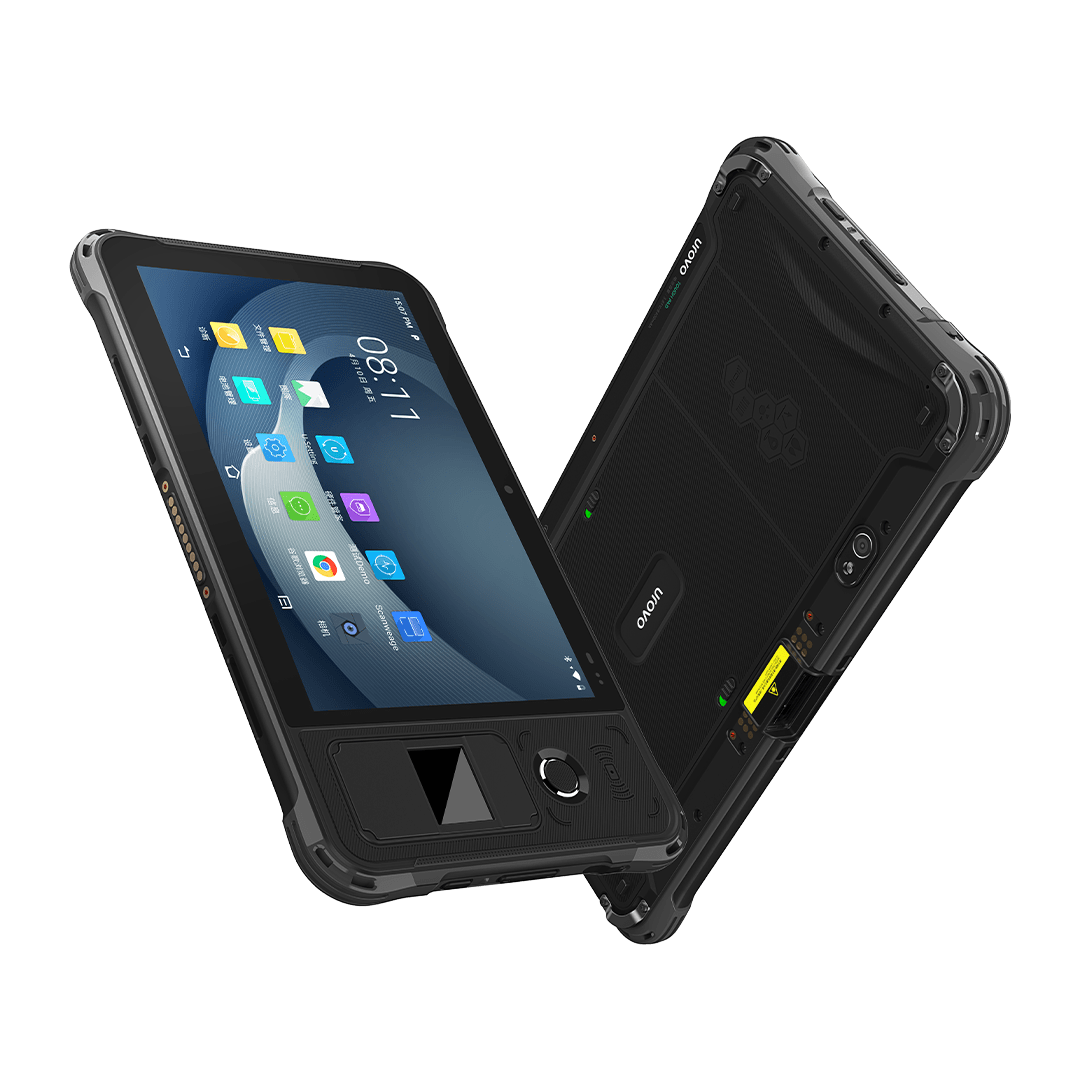

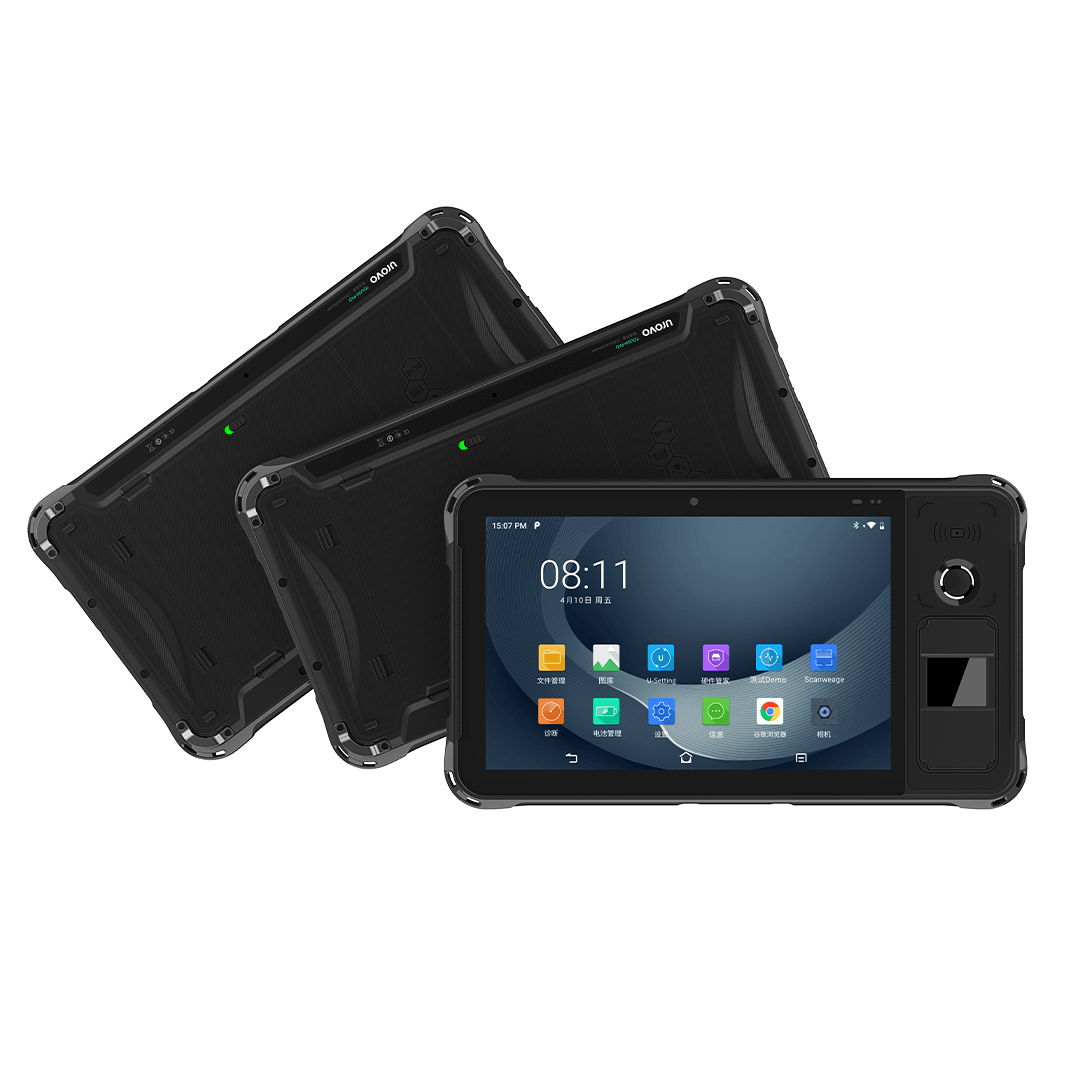

Keyboard version | optical fingerprint version | electromagnetic screen version
Operation
General GPSs, which do not support high-accuracy positioning, cannot adapt to specialized sites that require high-accuracy positioning, including engineering surveying and mapping, power measurement, railway inspection, and agricultural and forestry operations.
The RTK high-accuracy positioning module has the ability to derive three-dimensional results of the testing site in the designated coordinate system, which can reach an accuracy level of 1 cm.
Professional applications for higher work efficiency
P8100 helps you to perform best with professional applications, in manufacturing workshops, logistics warehouses, government inspection sites, or health care organizations.
Specifications
CPU: Octa-core Cortex-A53, 1.8GHz
OS: Android 9 Pie with GMS (Google Mobile Services)
Memory: 4GB RAM / 64GB ROM, Micro SD card, up to 256GB
Display: 1280×800 (HD)
Touchpanel: Capacitive – Multiple touch screen, support gloves, wet finger and passive stylus; Electromagnetic(optional) – Multiple touch screen, support gloves, wet finger and passive stylus signature
Dimension: 253.8*146*16.5mm
Weight: 728.5g
Power: Capacity: 3.8V 8400mAh
Audio: Dual-speakers, Dual microphones, audio jack
Scanning: 1D/2D barcode reader; Can read all international standards; 1D/2D barcode； Can read barcode displayed on screens and colored barcode
Camera: Front 5M Pixels, Rear 13M Pixels, Flashlight
Buttons: Vol+/-, power key, scan key, P1~P8, function key ; Vol+/-, power key, scan key (Fingerprint model)
Bluetooth: BT4.2+BR/EDR+BLE
WiFi: 2.4G/5G WIFI, IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w
WWAN: 4G/3G/2G, Nano-SIM x 2
GPS: GPS, A-GPS, BEIDOU, GLONASS, Galileo, High-precision RTK(Precision0.01m) (Optional)
Sealing: IP67（without fingerprint）, IP54（with fingerprint）, Multiple 1.2m drop to concrete at room temperature.
Environment parameter: Temperature: -20°C~60°C, Storage: -40°C~70°C, Humidity: 5%RH~95%RH(no condensation)
